Stamping Die Inserts, Reviewed Before Manufacturing
Send your drawing for stamping die inserts with DFM, critical-dimension review, process planning, and inspection requirements aligned before production.

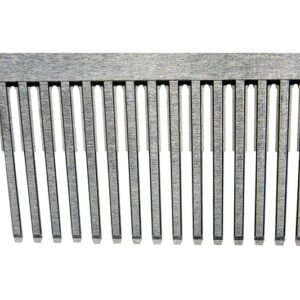

Representative Components for Stamping Die Insert Development
Related Stamping Die Insert Components and RFQ Support
Why Engineering Teams Choose SUUXIANG
Stamping die inserts are planned from the drawing through process coordination, inspection, and revision-controlled communication.
Drawing-Based DFM Review
Review critical dimensions, datums, tool access, surface requirements, and manufacturability before quotation or production commitments are made.
Coordinated Process Planning
Plan CNC machining, EDM, grinding, fitting, and inspection as connected steps around geometry, material condition, and functional requirements.
Critical Dimension Focus
Identify dimensions requiring defined measurement methods, acceptance criteria, and inspection attention before manufacturing routes are finalized.
Revision Visibility
Keep drawing revisions, specification updates, and project decisions visible so production work follows the confirmed requirement.
Traceable Project Communication
Align material, quantity, quality expectations, delivery needs, and inspection documentation through structured drawing-based project communication.
Stamping Die Component Families
Drawing-driven component families for die builders who need controlled process routes, critical-dimension planning, and inspection aligned to functional assembly.
CNC Machining Services
Precision CNC machining services support drawing-based die components requiring coordinated milling, turning, EDM, grinding, fitting, and inspection. The process route is defined around critical dimensions, material condition, tool access, and the evidence required before production begins.
Upload a Drawing
CNC Milling
Custom CNC milling services produce plates, inserts, retainers, form details, and other prismatic die features. Drawing review addresses datums, pocket access, clamping strategy, machining allowance, and interfaces that must assemble reliably with mating tooling components.
Upload a Drawing
CNC Turning
Precision CNC turning services are suited to rotational die components such as punches, bushings, guide elements, spacers, and custom shafts. Diameter relationships, runout requirements, shoulder geometry, material condition, and downstream grinding needs should be established from the drawing.
Upload a Drawing
5-Axis Machining
5-axis CNC machining helps reach angled, contoured, and multi-face features while reducing unnecessary setups on suitable components. Process planning evaluates tool access, fixture stability, datum transfer, surface requirements, and whether the geometry is better completed by EDM or grinding.
Upload a Drawing
Swiss & Micro Machining
Swiss machining and micro machining support small, slender, or detail-intensive components where concentricity, feature spacing, and handling require careful control. Suitable projects are reviewed for stock size, geometry, material behavior, inspection access, and functional mating requirements.
Upload a Drawing
Wire EDM Services & Sinker EDM Services
Wire EDM and sinker EDM services create hardened profiles, narrow slots, sharp internal geometry, and difficult-to-machine details. Electrode strategy, wire path, corner conditions, recast-layer considerations, finish requirements, and subsequent fitting or polishing are reviewed before release.
Upload a Drawing
Precision Grinding
Precision surface and profile grinding establishes controlled flatness, parallelism, squareness, profile accuracy, and final stock removal on die components. Grinding stock, heat-treatment sequence, datums, wheel access, and inspection method should be defined with the drawing package.
Upload a Drawing
Mold Core & Cavity Inserts
Precision mold core inserts and mold cavity inserts are configurable tooling components made from customer drawings and specifications. Their manufacturing route considers parting surfaces, shutoffs, cooling or feature access, heat treatment, EDM requirements, grinding stock, and critical interfaces before machining begins.
Upload a Drawing
Ejector & Ejection Components
Ejector pins, sleeves, and ejection components support controlled part release and repeated mold operation. Review focuses on fit with mating holes, guidance, length relationships, tip geometry, hardness requirements, wear conditions, and inspection criteria relevant to the assembly.
Upload a Drawing
Core Pins, Guide & Locating Components
Core pins, guide pins, and locating components establish repeatable alignment and form critical internal geometry. Manufacturing planning addresses diameter and position tolerances, datum relationships, wear surfaces, heat-treatment sequence, finish, and the mating component or plate design.
Upload a Drawing
Slides, Lifters, Gates & Mold Accessories
Mold slides, lifters, gates, and accessories address side actions, release geometry, material flow, and supporting mold functions. Each drawing is evaluated for travel interfaces, contact surfaces, tool access, EDM details, fitting allowance, and assembly-critical dimensions.
Upload a Drawing
Connector Mold Components
Precision connector mold components support tooling used for connector features with dense pin patterns, fine geometry, and demanding alignment. The review should identify cavity or core relationships, small-feature manufacturability, electrode needs, surface requirements, and inspection points.
Upload a Drawing
Stamping Die Components
Precision stamping die components include configurable punches, dies, inserts, stripper details, guide elements, and formed tooling parts. Production planning considers cutting-edge geometry, clearance relationships, material and heat treatment, grinding sequence, EDM details, and assembly datums.
Upload a Drawing
Injection, MIM, CIM & Overmolding Tooling
Injection mold components for injection molding, MIM, CIM, and overmolding are manufactured to the verified requirements of each drawing-driven project. Process discussion covers material-flow features, core and cavity interfaces, inserts, shutoffs, surface needs, thermal treatment, and inspection expectations.
Upload a Drawing
Machining Materials
CNC machining materials are selected against drawing requirements, functional loading, wear, corrosion exposure, heat-treatment response, and downstream finishing. Material grade, supply condition, substitution restrictions, and any required traceability should be specified with the RFQ.
Upload a Drawing
Surface Finishes & Heat Treatment
Surface finishing and heat treatment are planned as part of the component route, not added after dimensional decisions. Requirements may affect machining allowance, distortion risk, grinding sequence, wear performance, corrosion resistance, surface texture, and final inspection timing.
Upload a Drawing
Quality, Metrology & Documentation
Precision inspection, metrology, and quality documentation are aligned to the approved drawing revision and inspection plan. Buyers should identify critical dimensions, datum scheme, reporting format, material or treatment evidence, sampling expectations, and any assembly-related verification needs.
Upload a Drawing
Prototyping & Low-Volume Production
Rapid prototyping and low-volume manufacturing support evaluation builds, tooling development, replacement parts, and controlled production quantities. A useful RFQ includes the 2D drawing, 3D model when available, material, quantity, revision, delivery target, and quality requirements.
Upload a DrawingMaterials for Stamping Die Inserts
Tool Steel
Commonly considered for drawing-based stamping die inserts where balanced machinability, heat treatment and service wear are required. Grade selection, hardness target, grinding stock and critical dimensions should be confirmed during RFQ review.
High Speed Steel
Often evaluated for inserts exposed to repeated cutting or piercing contact. Its wear resistance can support demanding working edges, while machining, EDM strategy, heat treatment and final grinding allowances require drawing-specific review.
Tungsten Carbide
Considered for high-wear cutting, punching and forming locations where a hard working surface is needed. Carbide grade, geometry, mounting support, EDM access and inspection method should be assessed with the mating die components.
Stainless Steel
May be specified where corrosion resistance, environmental exposure or compatibility with adjacent tooling matters. The selected grade affects machinability and heat-treatment options, so material certification and functional requirements belong in the RFQ.
Alloy Steel
Used for configurable insert and support-component applications when strength, toughness or heat-treatment response guide the decision. SUUXIANG reviews the drawing, operating load, surface requirements and downstream grinding plan before confirming suitability.
Machining and Finishing for Stamping Die Inserts
Wire EDM
Wire EDM produces intricate through profiles, narrow slots, and controlled internal contours where conventional cutter access is limited. The wire path, start-hole strategy, corner condition, and required finishing passes are defined from the drawing.
Sinker EDM
Sinker EDM forms deep cavities, sharp internal features, and detail that may require a dedicated electrode approach. Electrode strategy, spark allowance, surface requirement, and post-EDM finishing needs are considered during technical review.
Fitting and Inspection
Fitting verifies practical mating relationships where assembly context is supplied, while inspection follows the agreed critical-dimension plan. Measurement methods, reporting expectations, revision status, and traceability are aligned with the order requirements.
Stamping Die Inserts and Supporting Tooling Components
Guide Components
Guide pins, bushings, keys, and locating features can be produced where the drawing defines their fit, datum relationship, material, and surface requirements for controlled die alignment and repeatable assembly.
Locating Features
Custom locating blocks, pilots, dowels, and stop elements help establish strip position or component location. Provide mating-part geometry and critical dimensions so the interface can be assessed for machining access and inspection.
Fastener Interfaces
Threaded holes, counterbores, dowel bores, and clamping faces can be integrated into related die components. Specify fastener standards, engagement requirements, datum references, and any assembly sequence that affects machining strategy.
Ejection Parts
Ejector pins, sleeves, retainers, and clearance-related components may be considered when their geometry and functional relationship are defined. Drawing review should address sliding fit, wear surfaces, heat treatment, and inspection needs.
Identification Marking
Part numbers, revision marks, orientation identifiers, and traceability labels can be specified for die assemblies. Define marking location, character requirements, permanence expectations, and whether identification must remain visible after fitting.
Assembly Provisions
Assembly details such as reliefs, access holes, fitting allowances, and mating interfaces should be shown on the drawing set. Clear revision control helps coordinate stamping die inserts with associated components and inspection documentation.
About SUUXIANG Stamping Die Inserts
Established in 2010 in Chang’an Town, Dongguan, SUUXIANG is the public-facing brand of Dongguan SuuXiang Precision Mold Co., Ltd. We help international engineering, sourcing and quality teams translate drawings and specifications into inspected custom CNC parts, precision mold components, connector tooling and stamping die inserts.
Our practical workflow combines CNC milling and turning, multi-axis machining, EDM, precision grinding, fitting and inspection. Each route is considered against critical dimensions, datum strategy, material and heat-treatment requirements, machining access, grinding stock and the inspection evidence required for the order.
What distinguishes SUUXIANG is disciplined project communication before production commitments. We begin with drawing review and DFM, identify revision-sensitive and quality-critical requirements, then coordinate manufacturing and documentation around the agreed inspection plan. This gives B2B teams a clearer basis for RFQs, supplier evaluation and delivery coordination.
Core Capabilities for Stamping Die Inserts
Drawing and DFM Review
Each stamping die insert project begins with a review of the drawing, model, material, application and quality requirements. SUUXIANG identifies critical dimensions, datum relationships, tolerance-stack risks and machining-access constraints before quotation or production commitments are made.
- Confirm critical-to-quality dimensions and datum strategy
- Review tolerances against feature geometry and tool access
- Identify material, heat-treatment and surface requirements
- Clarify quantity, mating context and inspection expectations
CNC and EDM Route Selection
Process planning matches the insert geometry to an appropriate combination of CNC milling, turning, multi-axis machining, wire EDM or sinker EDM. The route is considered against internal corners, narrow features, hardened conditions, electrode needs and the dimensions that require the closest control.
- Assess CNC access before assigning EDM operations
- Plan wire paths for profiles and precision slots
- Define electrode strategy for inaccessible or intricate features
- Sequence machining around heat treatment where required
Grinding and Fitting Strategy
For stamping die inserts with bearing, shutoff, locating or mating surfaces, grinding stock and fitting requirements should be defined early. SUUXIANG plans allowances around prior operations so finishing work supports the intended relationship between the insert, die block and associated components.
- Reserve grinding allowance on designated precision surfaces
- Review shutoff, bearing and locating relationships
- Coordinate fitting needs with mating-component information
- Avoid removing functional stock during earlier machining
Inspection and Revision Control
Inspection planning is tied to the order, approved drawing revision and identified critical features. Measurement methods, reporting needs and delivery details are clarified before production, helping engineering, sourcing and quality teams maintain traceable communication as stamping die insert requirements evolve.
- Link inspection points to critical drawing dimensions
- Confirm requested reports and documentation before release
- Maintain visibility of drawing revisions and project changes
- Align final records with the verified inspection plan
Why Choose SUUXIANG for Stamping Die Inserts
A drawing-driven workflow for teams that need manufacturability review, controlled process planning, and inspection-aligned delivery.
← Swipe left or right to view →
Stamping Die Inserts Production Workflow
A controlled path from drawing review through process planning, machining, inspection, and delivery coordination.
Review Drawings and Requirements
We review 2D drawings, available models, material, quantity, application, critical dimensions, surface requirements, delivery target, and requested inspection documentation before quotation.
Plan Process and Controls
The team confirms datum strategy, machining access, heat-treatment sequence, EDM or wire-path needs, grinding stock, fitting considerations, and inspection methods for the order.
Machine Critical Features
CNC milling, turning, multi-axis machining, wire EDM, or sinker EDM are selected according to the approved geometry, access conditions, and feature requirements.
Grind, Fit, and Finish
Where required, controlled grinding, fitting, and finishing address functional surfaces, mating relationships, machining allowance removal, and assembly-relevant details identified during review.
Inspect Against Drawing Requirements
Inspection follows the agreed plan, focusing on critical dimensions, datums, surface requirements, and documented results needed to confirm the supplied stamping die inserts.
Pack and Coordinate Delivery
Parts are protected and packed to suit the order, with revision information, applicable documentation, and delivery coordination kept visible through final dispatch.
How to Order Stamping Die Inserts from SUUXIANG
A controlled path from drawing review through inspection planning, production coordination, and delivery.
Submit Your Drawing Package
Send 2D drawings, available 3D models, material and heat-treatment requirements, quantity, delivery target, critical dimensions, surface priorities, and required inspection documentation.
Review DFM and Quotation
Confirm datum strategy, machining access, EDM or grinding requirements, tolerance risks, inspection approach, revision status, commercial scope, and delivery assumptions before production commitment.
Approve First-Article Requirements
Where the project requires it, align on sample or first-article expectations, measurement methods, acceptance criteria, reporting format, and any mating-component information affecting fit.
Coordinate Production and Delivery
Proceed through the agreed CNC, EDM, grinding, fitting, and inspection route while keeping revision control, order documentation, and delivery coordination visible throughout the project.
Stamping Die Inserts: Certifications and Quality Documentation
Verified Stamping Die Inserts Project Feedback
Customer testimonial pending approval. Publish only after the customer confirms the wording, project scope, quantity, and inspection outcome for the stamping die insert order.
Case summary pending verification. Before publication, confirm the drawing revision, critical dimensions, inspection method, production quantity, and documented result with the responsible customer contact.
Customer feedback pending authorization. Use only approved language that identifies a specific outcome, such as first-article acceptance, delivery quantity, or inspection evidence, without disclosing confidential part details.
Customer Feedback Publication Standards
Practical guidance for drawing-based quotation, quality planning, and delivery coordination.
What files should I send for stamping die inserts?
Is there a minimum order quantity for custom stamping die inserts?
Can I order a sample of stamping die inserts before production?
How is lead time for stamping die inserts assessed?
Which materials and heat treatments can be considered?
Can SUUXIANG provide inspection reports for custom die components?
How are stamping die inserts packaged and shipped internationally?
How do payment and IP protection work for a custom RFQ?
The Complete Buyer’s Guide to stamping die inserts
A practical decision framework for specifying stamping die inserts, assessing supplier capability, controlling tooling risk, comparing total cost, and avoiding drawing, material, tolerance, and maintenance mistakes before production.
1. What Are stamping die inserts?
1. Stamping die inserts are replaceable, precision-made working elements fitted into a larger die assembly. They create a defined local function at a station—cutting, piercing, notching, forming, or locating the strip—rather than serving as the die’s full supporting structure.
2. Die shoes and plates provide the rigid foundation and mounting surfaces; guide components maintain alignment; punches apply force into a mating opening. An insert is the removable member carrying a localized profile, land, form detail, or locating geometry, while a complete die set includes all of those coordinated parts. Reference: https://www.keatsmfg.com/blog/what-is-a-die-in-metal-stamping
3. Replaceability is the sourcing reason: a worn, damaged, revised, or application-specific feature can be serviced without remanufacturing a larger block. For an RFQ, identify the insert’s function, mating punch or component, datums, clearance-sensitive features, material and heat-treatment requirements, finish, and inspection dimensions so the part can be made and verified in its installed condition.
2. How Stamping Die Inserts Evolved
Two tooling approaches commonly appear in service history: integral working features machined into a larger die member, and replaceable inserts located within a holder or die block. The modular approach isolates high-wear or damage-prone geometry, so a repair can target the working component instead of remaking a larger tool section.
Three repeatability controls—defined datums, positive location, and controlled retention—made replacement inserts practical for production tooling. In progressive dies, punches and die inserts perform cutting and forming at successive stations; as station count and feature density increase, consistent insert positioning becomes central to repairability and setup recovery. Source: https://www.keatsmfg.com/blog/what-is-a-die-in-metal-stamping
One legacy drawing may show an insert only as a hardened detail, without clearly defining its mating pocket, dowel strategy, screw clearance, or service direction. Before reproducing it with modern CNC, wire EDM, grinding, and inspection, buyers should confirm the functional datums, clearances, heat-treatment condition, revision level, and mating components. That history prevents a geometrically similar replacement from changing shut height, alignment, or maintenance access.
3. Types of stamping die inserts
Six insert families divide work by cutting, forming, guiding, stripping, or information transfer. Classify each station by load path and mating component before releasing drawings.
| Insert Type | Primary Load | Mating Part | Drawing Priority |
|---|---|---|---|
| Cutting die | Shear/compression | Punch | Clearance and profile |
| Punch | Axial impact | Die opening | Tip and backup |
| Forming | Side load | Pad or die face | Radii and datums |
| Wear/guide | Sliding | Mating plate | Clearance and lubrication |
| Stripper | Spring/contact | Punch and strip | Travel and relief |
| Marking/sensor | Contact/interface | Part or sensor | Orientation and access |
| Fixed design | Shared structural load | Die block | Assembly datum |
| Replaceable design | Wear or revision risk | Pocket and retainer | Repeatable location |
Cutting Die Inserts
Cutting inserts resist compressive shearing against punches; define profile, clearance, entry radius, and retention.
Punch Inserts
Punch inserts carry axial impact into a die opening; specify tip geometry, shank location, and backup support.
Forming Inserts
Forming inserts bend or draw stock under side load; identify radii, pressure surfaces, and mating pads.
Guide And Wear Inserts
Guide and wear inserts control sliding alignment; show datum faces, running clearance, lubrication, and replaceable wear limits.
Marking And Sensor Interfaces
Marking or sensor-interface inserts add identification or detection; define character orientation, sensor envelope, cable clearance, and service access.
4. Materials for stamping die inserts
Three inputs govern material selection for stamping die inserts: the strip alloy and thickness, the loading mode, and planned production volume. Edge retention, corrosion exposure, maintenance access, and repair strategy must be reviewed against the drawing.
| Material Family | Strengths | Limitations | Suitable Applications |
|---|---|---|---|
| Tool steels | Tough, machinable, repairable | Wear varies by grade and treatment | General cutting and forming |
| High-speed steels | Strong edge retention | Lower impact tolerance than tougher steels | High-wear cutting edges |
| Cemented carbide | Excellent wear resistance | Brittle; needs rigid support | Abrasive, high-volume operations |
Match Wear Mechanism
Abrasive, adhesive, and impact wear demand different substrates. Thin high-strength strip can concentrate edge loading, while thicker stock may favor tougher support behind the cutting land.
Separate Material Treatments
Tool steel, high-speed steel, and cemented carbide are substrate choices. Heat treatment establishes hardness and toughness balance; a coating is a separate surface treatment, not a substitute for sound substrate selection.
Plan For Maintenance
Replaceable inserts can reduce downtime when a localized edge wears or chips. Confirm fixing, datum recovery, grinding stock, and allowable rework before selecting a difficult-to-repair material.
5. Custom stamping die inserts and finishes
A drawing-defined insert should specify its working geometry and its replacement interface together. SUUXIANG reviews radii, clearance, relief, mounting holes, dowel locations, identification marks, and functional datums before selecting a machining route.
| Finish Route | Typical Purpose | Drawing Input Needed |
|---|---|---|
| Precision grinding | Flatness, fit, controlled stock | Datums and finish zones |
| Wire or sinker EDM | Internal profiles and reliefs | Wire path or electrode access |
| Polishing | Forming flow or release | Surface zone and direction |
| Coating | Wear or galling resistance | Material, treatment, application |
Lock The Datum Scheme
Two or more locating features can establish repeatable replacement only when their datum relationship is explicit. Dimension critical edges from functional datums, not from uncontrolled outside profiles.
A replacement set needs the drawing to define insert orientation, dowel fit, screw clearance, pocket relationship, and revision mark. Identification should remain outside the working surface and accessible after assembly.
Specify The Working Finish
Grinding establishes controlled flats, profiles, and fitting stock where access permits; wire EDM or sinker EDM reaches internal profiles, narrow reliefs, and difficult corners. Polishing is appropriate only where surface condition affects forming, material flow, or release.
A coating is an application-specific surface treatment, not a corrective action. It cannot compensate for unsuitable material, incorrect clearance, inadequate heat treatment, or an unstable datum scheme.
6. Quality Elements in stamping die inserts
Quality depends on the assembled die, not an insert drawing alone. Critical dimensions, datums, edge condition, hardness, finish, and records must be checked against the functional interface.
Datums And Functional Fit
100% of identified CTQs should reference agreed drawing datums. Measure insert location, pocket location, and seating surfaces from the same datum scheme.
0.01 mm variation is meaningless without the mating-pocket tolerance. Press guide alignment, pocket fit, and punch-to-die clearance jointly determine cutting performance.
Geometry And Surface Condition
Flatness and parallelism control how an insert seats and carries load. Verify them before assembly, alongside GD&T-defined position and profile features.
Burr-free cutting edges reduce unintended clearance changes and handling damage. Specify permissible edge break, surface-finish locations, and acceptance method on the drawing.
Material And Traceable Evidence
First articles should include material and heat-treatment evidence when required. Request hardness readings, coating condition records, dimensional results, and identified measurement equipment.
Repeat orders should retain the approved revision, inspection plan, and traceable lot records. Compare CTQ results with the first-article baseline before release.
- 2D drawing and approved revision
- CTQ inspection report
- Hardness and coating evidence
- Lot and delivery traceability
7. Choosing a stamping die insert manufacturer
A qualified supplier evaluates the drawing before committing to a process route. For stamping die inserts, compare project evidence—not advertised machine lists—against the actual datums, materials, heat treatment, and inspection plan.
| Evaluation Area | Claim To Test | Verifiable Evidence |
|---|---|---|
| Capacity | Available production support | Current schedule and delivery plan |
| Logistics | International shipment experience | Packing method and shipping documents |
| Communication | Responsive engineering support | Named questions, responses, and revision log |
Verify Process Evidence
1 drawing review should identify tool access, EDM requirements, grinding stock, and critical dimensions before quotation. Ask for an anonymized route card, sample inspection record, and explanation of the proposed datum sequence.
- DFM response with open issues
- CNC, EDM, and grinding route
- Material and heat-treatment records
- Inspection method for each CTQ
Control Revisions And Samples
2 controlled revisions are more valuable than informal email confirmations. Require revision identifiers on the quotation, model, inspection report, packing list, and sample-approval record.
1 first-article sample should be reviewed against agreed CTQs before repeat production. Confirm who approves deviations, how rework is recorded, and what documentation ships with the order.
Prepare A Protected RFQ
6 RFQ inputs usually allow an accurate quote without disclosing the complete production program: 2D drawing, 3D model when available, quantity, material, heat treatment, surface requirements, CTQs, delivery target, and reporting needs. Share mating context only where it affects fit, clearance, or function.
8. Common stamping die insert sourcing mistakes
Three functions—engineering, quality, and procurement—must align before a stamping die insert order is released. One missing requirement can become a fit-up delay, unplanned rework, or an uncontrolled production change.
Define The Interface
Two common errors are incomplete drawings and ambiguous datums. The consequence is conflicting inspection results; correct them with controlled 2D/3D files, datum references, critical dimensions, and revision identifiers.
One nominal size does not prove an assembly will fit. Specify functional clearance, tolerances, and mating-part geometry, then review stack-up and tool access before machining.
Control Material And Approval
One omitted heat-treatment requirement leaves hardness, distortion risk, and finishing sequence open to interpretation. State material, heat-treatment condition, surface requirements, and permitted grinding stock on the order.
One skipped first-article approval can transfer an unnoticed assumption into every supplied insert. Agree the sample quantity, inspection method, acceptance criteria, and disposition authority before repeat production.
Buy Total Lifecycle Value
One unit-price-only comparison can conceal inspection scope, change handling, and replacement risk. Procurement should compare the complete technical offer against the drawing, quality plan, lead-time needs, and communication record.
Two controls prevent avoidable downtime: defined spare quantities and revision control. Maintain approved drawings, inspection records, part markings where appropriate, and a clear process for superseded inserts.
9. From RFQ to validated production
A controlled handoff prevents a drawing from becoming an untraceable shop assumption. For stamping die inserts, assign design, tooling, quality, procurement, and supplier owners before release.
Prepare the RFQ
Design engineering supplies the released 2D drawing, available 3D model, mating-part context, quantity, and target date. Tooling identifies function, datums, critical dimensions, strip direction, and die location.
- Material and heat-treatment requirement
- Surface and edge-condition priorities
- Inspection report and traceability needs
- Current revision and change history
Review Manufacturability
The supplier returns DFM feedback covering tool access, machining allowance, EDM or wire path, grinding stock, and measurement feasibility. Tooling resolves functional trade-offs with design engineering before procurement compares quotations.
Freeze Quote and Revision
Procurement confirms price, scope, delivery requirement, and the exact drawing revision. The supplier records approved deviations; no verbal clarification should replace revision-controlled documentation.
Approve Production Evidence
Quality approves material evidence, heat-treatment requirements, sample status, and inspection criteria before production release. SUUXIANG should align final documentation with the order and verified inspection plan.
Validate and Control Changes
Tooling validates insert fit, shut condition, clearance, and trial performance in the die, then returns findings to quality and design. Reorders reference the approved revision, while engineering changes trigger renewed DFM and inspection review.
10. Stamping Die Insert Pricing and Cost
1 comparable RFQ scope is the only defensible basis for comparing stamping die inserts; a low headline price may omit heat treatment, inspection reports, coating, matched fitting, or protective packaging. SUUXIANG should quote against the drawing revision, quantity, material condition, critical dimensions, and required documentation.
2 cost control begins before machining: separate functional surfaces from noncritical stock, define datums, and state whether the insert must mate with an existing die component. Expedite requests should identify the required receipt date, because schedule compression can change the process sequence and inspection plan.
| Cost driver | Effect on unit cost | Effect on lead time | Buyer action |
|---|---|---|---|
| Geometry and access | More setups, electrodes, or wire paths increase cost | May add programming and EDM time | Simplify inaccessible features where function permits |
| Material and heat treatment | Special grades, hardness, and distortion control add cost | Adds procurement and treatment steps | Specify approved material and final condition |
| Grinding, EDM, and inspection | Critical surfaces and reporting increase cost | Adds finishing and verification time | Mark CTQs, datums, and report requirements |
| Quantity and matched sets | Setup is spread across quantities; matching adds fitting | Repeat quantities may shorten planning | Quote the full lot and mating-part context |
| Urgency and packaging | Expedite coordination and custom protection add cost | Compressed schedules carry risk | State need-by date and packing method |
Upload Your Drawing for Stamping Die Inserts Review
Send 2D/3D files, material, quantity, critical dimensions, inspection requirements, and target delivery date for a disciplined RFQ review.
