Cooling Channel Layout Around Mold Inserts

Start With the Thermal Map

A cooling channel layout around mold inserts should begin with the molded part, not with a preferred channel pattern. Identify thick regions, sharp transitions, ribs, bosses, cosmetic surfaces, gates, and features likely to retain heat. The objective is to understand where heat enters the tool and where uneven cooling could influence part temperature, shrink behavior, release, or cycle stability. A three-dimensional review is usually more useful than treating each plate face as an isolated drilling surface.

Mold inserts complicate this map because they create interfaces between materials and components. An insert may concentrate heat, interrupt a nearby water line, or provide a practical route for a dedicated circuit. Its role in forming the part also matters: a core detail can need different thermal attention than a cavity-side cosmetic detail. Where available, part simulation, prior process data, and the approved molding specification should guide the priority areas. Without those inputs, assumptions should be recorded for engineering review rather than presented as settled requirements.

• Mark regions with large local mass or restricted heat flow.
• Separate part-side priorities from tool-side access constraints.
• Identify which surfaces need independent temperature control.
• Record open thermal questions for review before detailed layout.

Choose the Cooling Architecture

Straight drilled circuits remain useful when the insert geometry allows practical proximity to the heat source, sufficient material around the channel, and accessible cross-drilling or plugs. They are often straightforward to communicate and service, but their linear paths may leave complex contours at unequal distance from coolant. That is not automatically a problem; it becomes a problem when the resulting temperature pattern conflicts with the part requirement or process window.

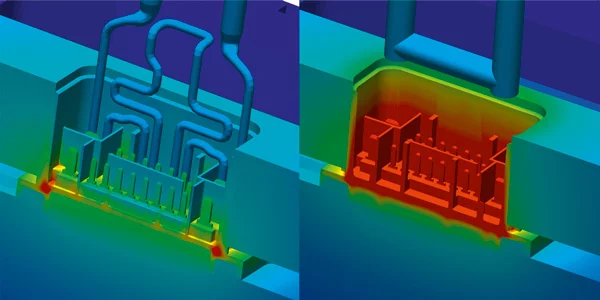

Contour-following channel concepts can place cooling nearer to curved or irregular geometry. They may improve thermal coverage in locations where straight drilling cannot approach consistently. However, their value must be weighed against fabrication route, cleanout provisions, connection strategy, surface finish requirements, inspection method, repairability, and the risks introduced by a more intricate insert. The selected method should follow the validated design case, not an assumption that either approach is always superior.

Protect Insert Strength and Sealing

Cooling performance cannot be separated from insert integrity. Every channel removes material and introduces intersections, plugs, ports, or sealing faces. The layout therefore needs a deliberate review of remaining walls around forming surfaces, corners, ejector features, mounting screws, locating elements, and adjacent circuits. Minimum sections and allowable proximity are not universal values. They should be established by the insert material grade, load case, mold construction standard, channel method, and the approved engineering agreement.

Interfaces deserve the same attention as channel centerlines. An insert can transfer coolant through connectors, seals, manifolds, or passages that cross assembly boundaries. Each interface should show its sealing method, counterbore or groove condition, assembly orientation, and access for replacement. A design that is thermally attractive but requires hidden plugs, unreachable seals, or ambiguous assembly order can create avoidable risk during build and maintenance. Include pressure and leak-test expectations in the release package, with acceptance criteria controlled by the project documentation.

• Check channel paths against fasteners, ejectors, locks, and locating features.
• Define plug orientation and tool access before releasing machining drawings.
• Show coolant transfer interfaces in section views and assembly views.
• Assign pressure-test requirements to the applicable drawing or inspection plan.

Balance Circuit Flow and Temperature

A channel layout is a circuit system, not merely a collection of holes. Circuit grouping affects how coolant reaches the insert, how pressure loss accumulates, and whether parallel branches receive comparable flow. Long routes, abrupt direction changes, mixed passage sizes, and poorly balanced branches can reduce the usefulness of otherwise well-positioned cooling. The design review should establish inlet and outlet locations, intended flow direction, circuit separation, and the points where coolant enters or leaves the insert.

Temperature management also depends on the wider mold system. Insert circuits may interact with plate cooling, hot-runner zones, external temperature-control equipment, and startup practices. If a feature needs separate regulation, the drawing should make that intent visible through circuit identification rather than relying on verbal explanation. Coolant type, expected cleanliness, allowable additives, target flow conditions, and operating temperatures are process inputs. They must be provided or agreed for the specific project; they cannot be inferred reliably from insert geometry alone.

Design for Manufacture and Service

Manufacturing feasibility should be checked while the thermal concept is still flexible. For drilled layouts, review drill reach, cross-hole intersections, thread depth, plug seats, deburring, and the likelihood of trapped debris. For non-linear routes, define the fabrication process, reference surfaces, path data, post-processing needs, and the means of verifying internal geometry. A cooling route that cannot be cleaned, inspected, or repaired according to the project plan may be unsuitable even when its thermal placement looks favorable.

Serviceability means more than access to external fittings. Consider how technicians will identify circuits, isolate a suspected leak, remove an insert, replace seals, and restore the original assembly relationship. Connection positions should avoid conflicts with mounting, handling, and neighboring mold components. Where water passages depend on a particular assembly sequence, include that sequence in controlled build notes. This turns maintenance knowledge from an informal habit into a repeatable handoff requirement.

• Provide clear circuit labels at external connection points.
• Specify cleaning and flushing requirements when the process plan calls for them.
• Document service-replaceable seals, plugs, and fittings separately from non-service features.
• Review insert removal clearance before finalizing hose and connector positions.

Make Drawings Inspection-Ready

The drawing package should communicate functional intent without overstating what has not been validated. Show channel centerlines, diameters or path definitions, port threads, plug specifications, circuit IDs, flow direction, seal details, and critical relationships to forming surfaces. Use section views where hidden passages or interfaces could be misunderstood. Dimensions that control thermal proximity, sealing, or component fit should be identifiable as such. Their tolerance and inspection method should be governed by the drawing, relevant standard, or approved control plan.

Inspection planning should distinguish features that can be measured directly from features that require indirect verification. A drilled channel may be confirmed through machining records, gauges, borescope access, or pressure testing, depending on the feature and agreement. More complex internal paths may require different evidence. The release package should state what records are required, who reviews exceptions, and how deviations are dispositioned. This prevents a late disagreement between design intent and available verification methods.

Prepare a Focused Quote Package

A strong pre-quote package allows a supplier to assess the cooling layout as an engineering scope rather than a vague machining request. Include the latest part model, mold or insert assembly context, material grades, required surfaces, expected molding material, available thermal analysis, and the applicable design standard. If the cooling concept remains provisional, identify it as such and ask for feedback on manufacturability, inspection options, and service implications. Clear status labels reduce the chance that a concept drawing is treated as a release drawing.

Also describe the operating boundary conditions that affect design choices. These can include planned coolant medium, expected supply conditions, mold orientation, connection restrictions, anticipated production environment, cleaning practice, and any customer-specific documentation requirements. State which party owns final thermal validation and what review gates will occur before release. Price, schedule, capacity, process capability, and final performance should be confirmed through the applicable commercial and engineering process rather than assumed from an editorial design discussion.

• Attach native and neutral-format geometry when required by the project workflow.
• List material and heat-treatment requirements under the controlling specification.
• Identify critical circuit, sealing, and inspection questions for supplier response.
• Clarify revision status and approval authority before fabrication release.
