Materials for Drawing-Based CNC Parts and Tooling

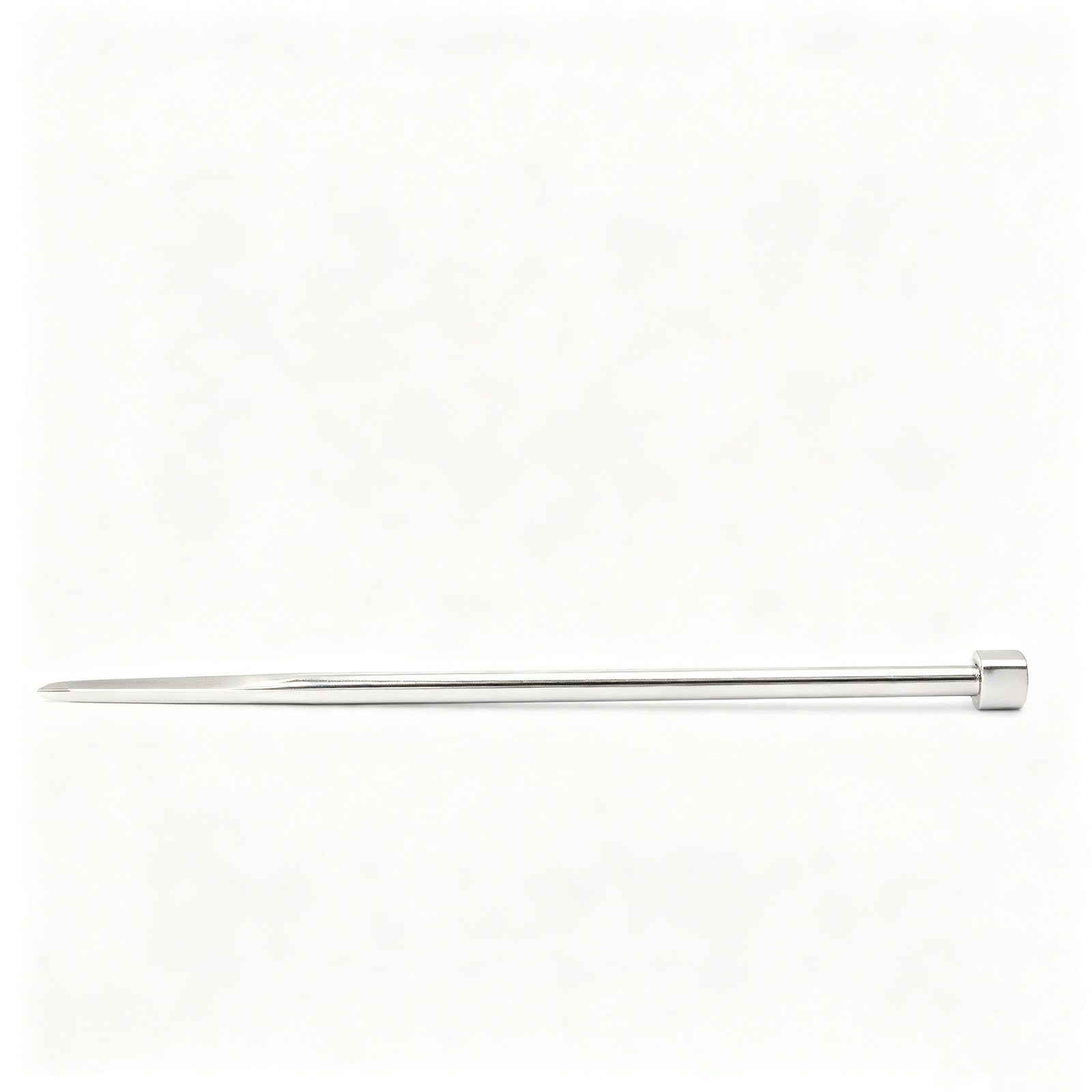

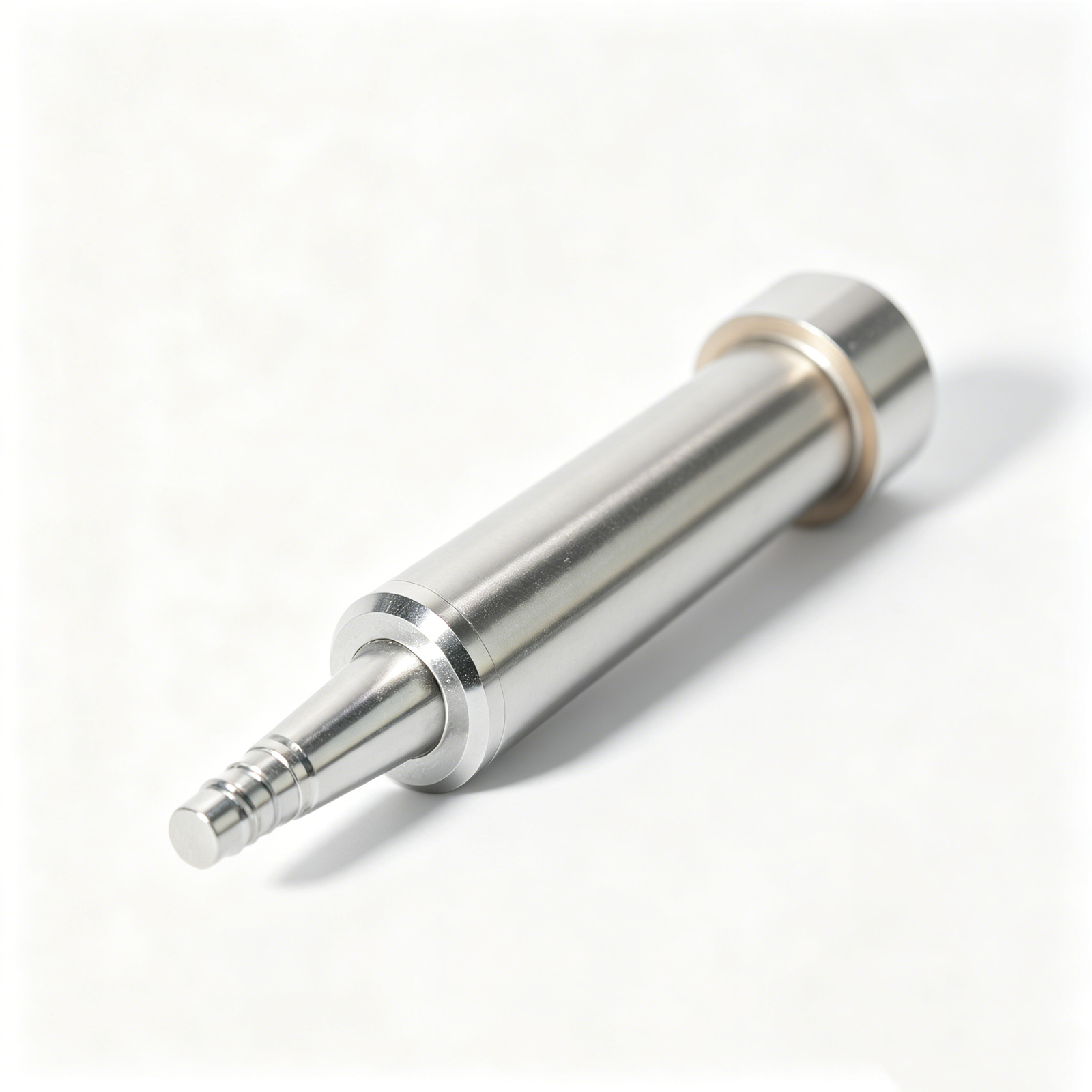

Metals And Alloys

Steel, stainless steel, aluminum, copper alloys, and titanium cover many machined-part roles. Metals suit structural parts, inserts, and conductive components.

High hardness can raise cutting forces and finishing time. Avoid a metal where mass, corrosion, or electrical isolation conflicts with the application.

Engineering Plastics

POM, PA, PEEK, and PTFE offer low mass, insulation, or chemical resistance. CNC plastic parts often serve fixtures, guides, prototypes, and nonmetallic interfaces.

Moisture uptake, creep, and thermal expansion affect dimensions. Avoid plastics for heavily loaded, hot, or tightly toleranced long-term contacts without validation.

Ceramics

Alumina, zirconia, and silicon carbide provide hardness, wear resistance, and heat stability. Ceramic components suit insulating, abrasive, or high-temperature interfaces.

Brittleness governs design and handling. Avoid ceramics where impact resistance, threads, or late-stage adjustment is required.

Composites

Carbon-fiber and glass-fiber composites combine fibers with a matrix for directional stiffness. They suit lightweight structural plates and specialized fixtures.

Fiber direction, delamination, and dust control complicate machining. Avoid composites for isotropic precision features or conductive contact surfaces unless specified.

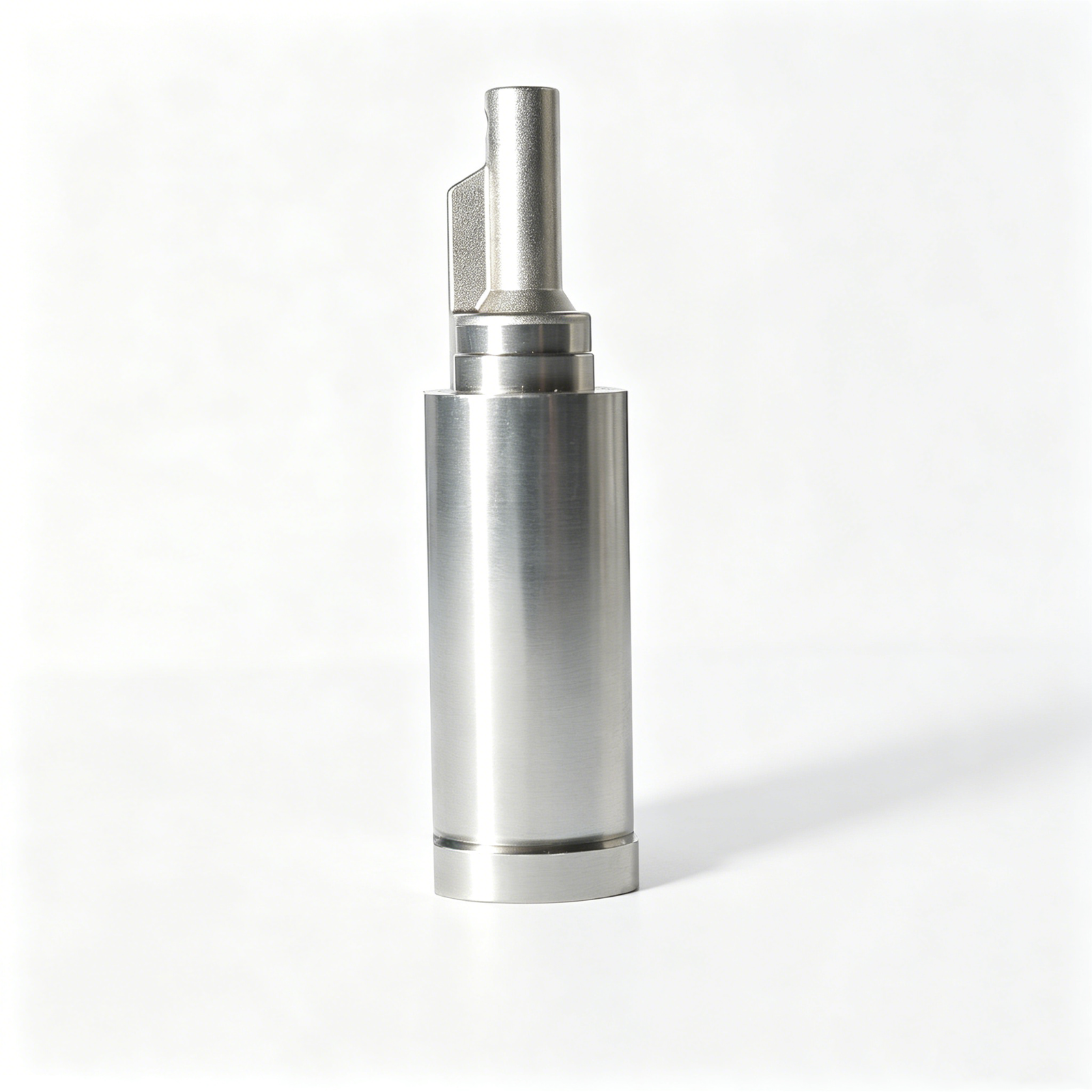

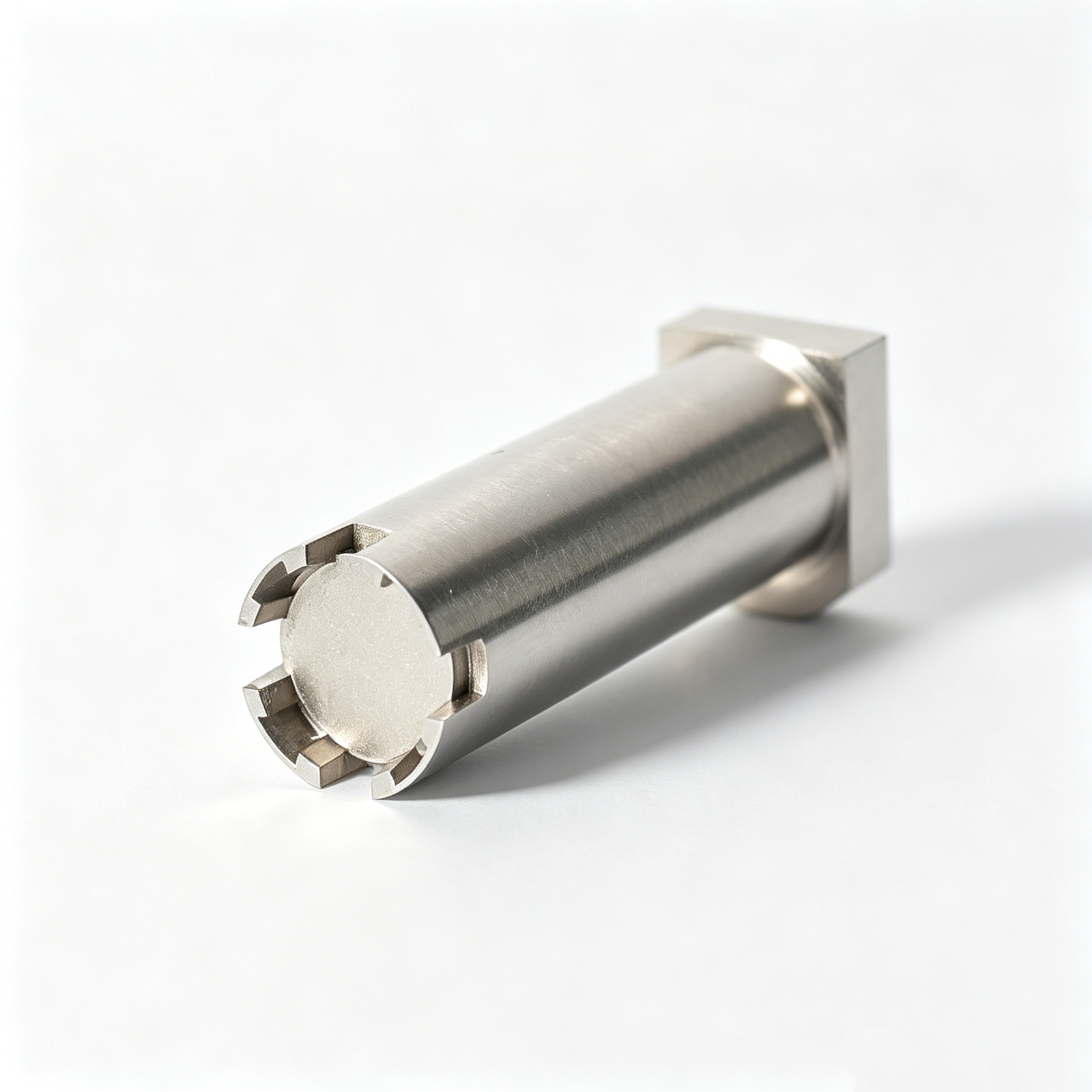

Tool Material Families

Tool steels, carbide, and copper alloys support mold cores, EDM electrodes, punches, and wear parts. Heat treatment and grinding allowance must be defined with the drawing.

Carbide resists wear but is brittle; tool steel needs controlled heat treatment. Avoid selecting by grade name alone without hardness and service conditions.

Strength And Hardness

Tool steel suits cores and dies when compressive load and wear dominate. Aluminum reduces mass but is rarely the first choice for abrasive tooling.

Environment And Function

Stainless steel addresses corrosive service, while brass supports conductive inserts. POM, PEEK, and nylon require allowance for polymer creep, temperature, or moisture behavior.

Machining And Stability

Heat treatment can move tool-steel dimensions, so leave grinding stock and inspect after final processing. Thin aluminum walls and moisture-sensitive nylon also need datum-aware fixturing and inspection.

Drawing Requirements

2D drawings should state grade, standard, condition or temper, and acceptable hardness range.

3D models define geometry; drawing notes govern requirements and datum-linked critical features.

Finish Callouts

1 finish callout should name roughness, coating system, masked areas, and marking location.

Color or resin can be cosmetic; conductivity, friction, adhesion, and corrosion resistance are functional requirements.

Traceability Expectations

1 lot identifier should connect stock, treatment certificates, inspection records, and shipped parts.

Required records, report format, retention expectations, and certificate needs belong in the RFQ.

Change Control

0 substitutions should be assumed; list approved equivalents, revision level, and approval route.

Any grade, temper, heat-treatment, coating, or source change needs written acceptance before production release.

Grade And Certificate Control

Each purchase order should state the required grade, delivery condition, heat-treatment requirement, and any approved substitution rule.

Each mill certificate should be matched to the received lot before release; a grade name without heat or lot identification is incomplete evidence.

Incoming And Heat Treatment Checks

Incoming inspection should confirm identification, stock form, visible condition, and dimensions that affect machining allowance or datum planning.

Heat treatment must follow the specified sequence because distortion, scale, and hardness variation can change grinding stock and final geometry.

Surface Integrity And Traceability

Hardness testing should use the drawing or agreed control plan to define method, location, and acceptance criteria.

Final edges require burr control, while EDM, grinding, and finishing require review for surface condition that could affect fit, fatigue, sealing, or mating behavior. Lot traceability should connect material evidence, process records, inspection results, and revision level.

DFM Response And Process Fit

Critical dimensions should trigger questions on datums, tool access, EDM or grinding allowance, and heat-treatment sequence. Ask which operations are proposed and which risks remain conditional.

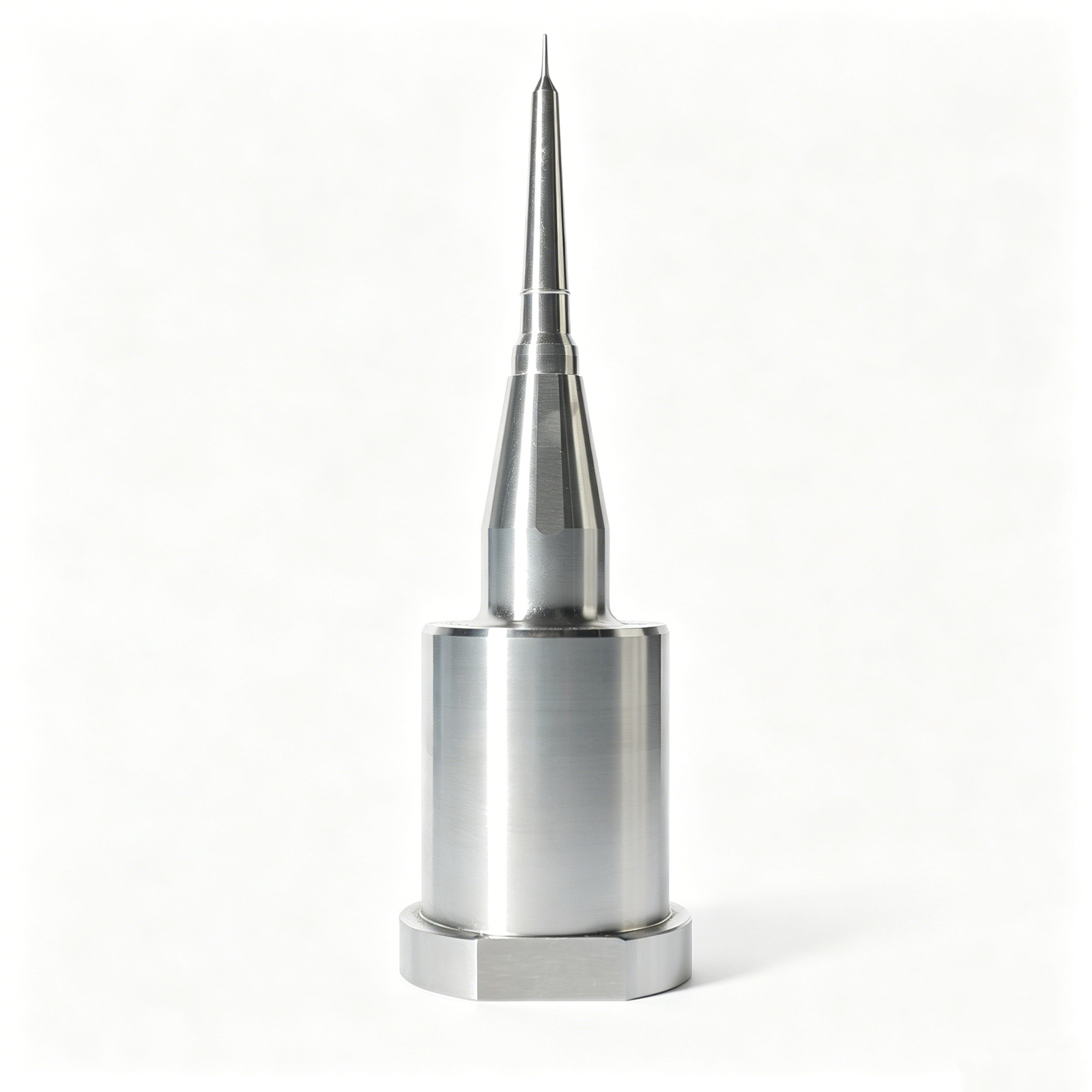

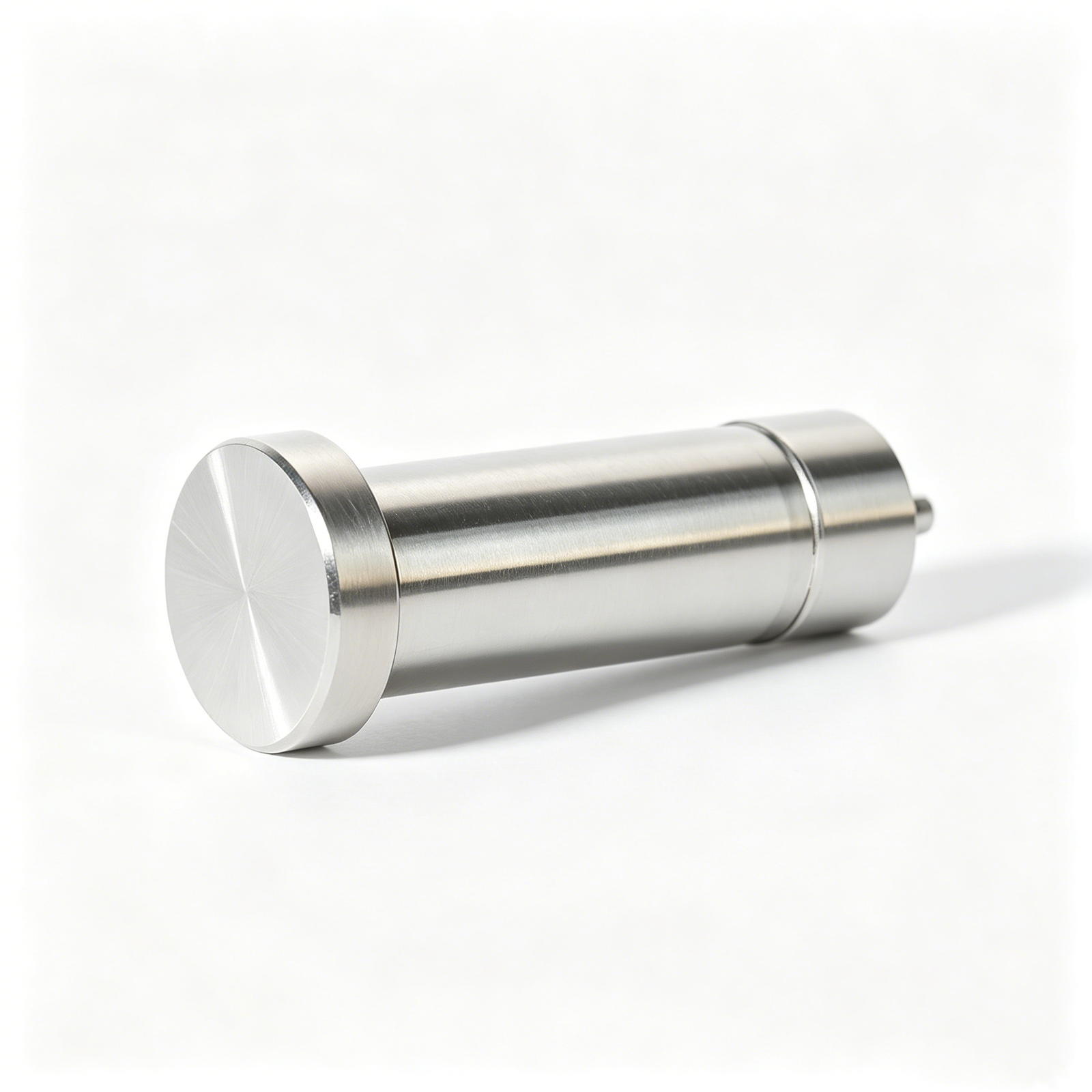

Multi-axis, wire EDM, sinker EDM, and grinding serve different geometries. Request a route matched to mold, connector, or stamping-die features.

Material Sourcing And Records

Material specifications should identify grade, condition, heat treatment, and required traceability. Ask what incoming evidence accompanies the lot and how substitutions require approval.

Inspection records should align with the drawing revision and agreed critical features. Confirm report format, measurement method, and nonconformance communication before purchase.

Scale And Communication

Prototype quantities and low-volume repeats require revision discipline rather than assumed capacity. Ask how the supplier preserves approved process knowledge when quantities change.

A 2D drawing and 3D model reduce interpretation gaps. Confirm one technical contact, response expectations, and escalation steps for design changes.

Samples And First Articles

First articles should verify the agreed datums, critical dimensions, surface requirements, and documentation set. Ask whether inspection occurs before shipment and what evidence accompanies samples.

A sample approval should define the production baseline. Record open deviations, material status, and revision number before authorizing further parts.

Specify Grade And Condition

A generic ‘stainless steel’ note can permit alloys with different machinability, hardness response, and corrosion behavior.

One drawing should name the recognized grade, delivery condition, heat treatment, and required evidence.

Evaluate Total Manufacturing Risk

A low unit price can omit grinding stock, distortion control, traceability, or inspection needed for critical dimensions.

One RFQ comparison should align material form, process route, reporting, yield risk, and delivery assumptions.

Control Interfaces And Finishes

Two dissimilar metals in a wet or conductive assembly can create corrosion risk at the mating interface.

One release package should define mating materials, coating or passivation, surface finish, and inspection method.

Formalize Changes Early

An informal substitution or late DFM review can invalidate datum strategy, EDM access, heat-treatment sequence, or qualification evidence.

One controlled approval should document the revised grade, drawing revision, deviation scope, and acceptance checks before production.

Build The Release Package

Two files form the baseline: a revision-controlled 2D drawing and matching 3D CAD model. Specify datums, GD&T, material grade, heat treatment, finish, quantity, and inspection-report requirements; identify critical features rather than applying blanket tolerances.

Separate Prototype From Production

Prototype orders should test fit, machining access, heat-treatment distortion, and inspection approach before final release. Production-ready release follows approved first articles, closed deviations, stable material documentation, and a confirmed revision; repeat orders must reference that released package.

Retain Procurement Evidence

Three document groups protect repeatability: the released technical package, supplier correspondence, and acceptance records. Retain RFQ assumptions, DFM comments, material and heat-treatment evidence when required, inspection reports, first-article approval, deviation disposition, packing details, and purchase-order revision history.
