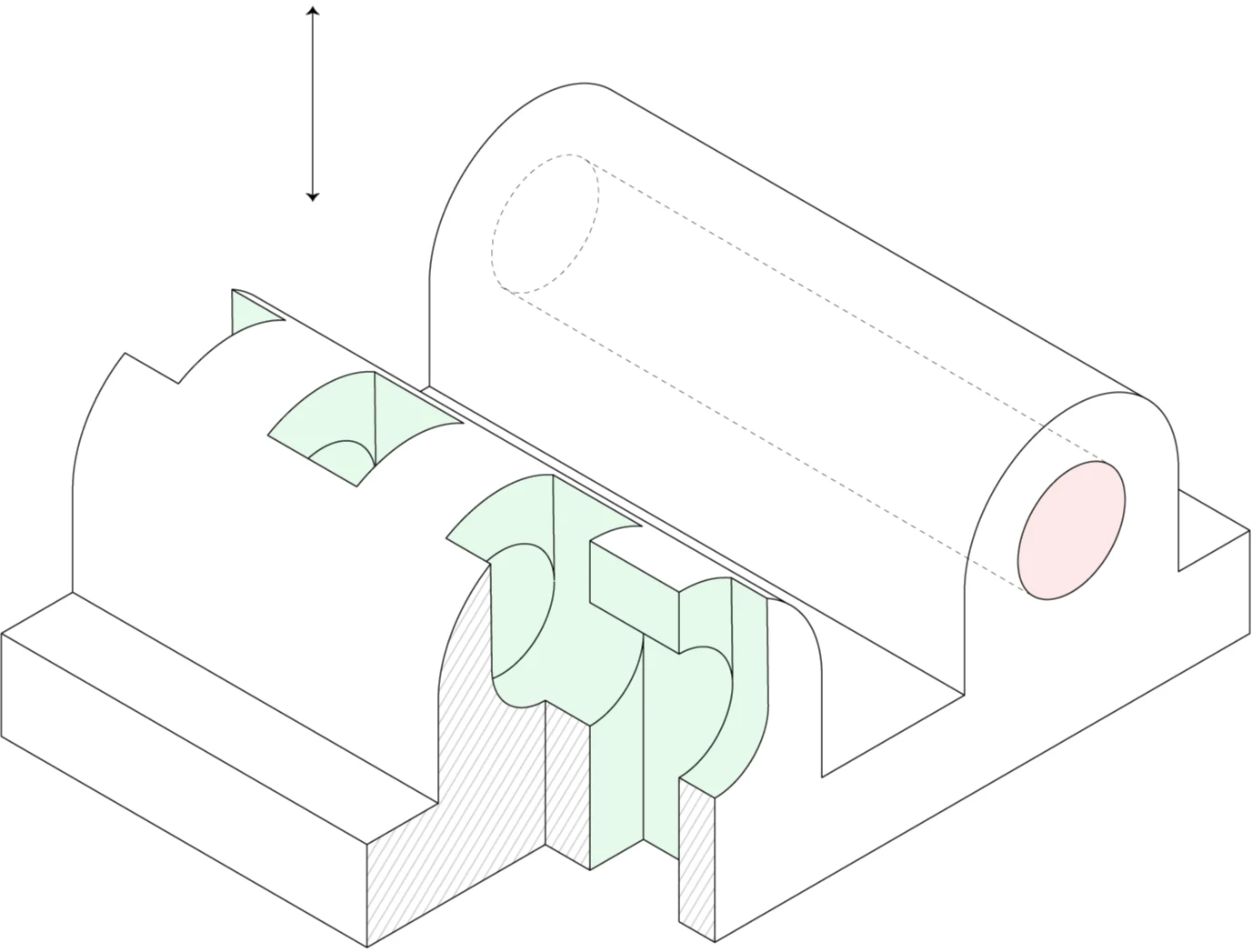

Shut-Off Surface Design in Injection Molds
Shut-off surfaces determine how mold members seal around steel conditions, pass-through features, and parting-line interruptions. Their design is not a single angle or finish choice: geometry, loading direction, venting, material behavior, service access, and inspection references must work together. This article explains how to make those decisions visible in the part design, tooling package, and pre-quote review.
On this page
Start With the Sealing Function
A shut-off surface is the mating steel interface that prevents polymer from entering an unwanted gap while the mold is closed. It may form a local interruption in the parting line, seal around a feature, or divide a complex cavity condition into manufacturable members. The important question is not simply whether two faces meet. The question is what pressure, motion, and dimensional relationship the interface must manage throughout closing, injection, packing, opening, and repeated cycling.
Classify each interface by its job before selecting its geometry. A stationary cavity-to-core seal has different risks from a moving insert seal, a side-action interface, or a feature that depends on a slender projecting steel condition. This classification helps the design team separate a cosmetic boundary from a flash-control boundary and identify where a local mismatch could affect fit, appearance, or downstream assembly.
Choose Geometry Around Load Paths
Mating geometry should guide closing forces into robust supporting steel rather than concentrate load at a thin edge. Angled shut-offs can promote positive engagement, but their suitability depends on available steel mass, alignment method, opening direction, and the risk of rubbing during operation. Near-vertical faces may simplify a local form, yet they can be more sensitive to closure alignment and wear if they are expected to seal under demanding conditions.
Avoid treating a nominal angle as a universal design rule. The appropriate geometry is controlled by the tool layout, material grade, mold construction, projected area, expected molding conditions, and the engineering agreement. Review the complete engagement path in section and in motion, including how the faces approach, where they first contact, and whether one member can deflect before the intended sealing area is fully supported.
Balance Flash Control and Wear
A tighter, more forceful interface can improve resistance to flash, but it may also increase sliding contact, galling potential, and sensitivity to contamination. A design that seals well in a static cross-section may have a poor service life if the faces scrape during every cycle or if ejection loads distort a local steel feature. Consider the contact sequence and the likely direction of relative movement, rather than reviewing only the closed position.
Surface condition belongs in this decision. A polished sealing land, a vented area, and a cosmetic texture boundary should not be specified as though they have identical duties. The intended mold finish, coating if any, material pairing, lubrication practice, and maintenance plan should be documented through the applicable process plan. Where the molded part requires a controlled visual transition, the approved appearance standard should distinguish it from a functional shut-off requirement.
Provide Venting Without Weakening Steel
Shut-offs often sit near the last areas to fill, where trapped gas can affect filling behavior or mark the part. Venting should therefore be reviewed as part of the sealing strategy, not added after the mating faces are finalized. The vent location, route, cleanout access, and relation to the cosmetic surface need to be considered with the local steel thickness and the chance that residue will affect the seal.
A vent must not turn a critical sealing edge into an unsupported, fragile detail. Decide which regions are intended to seal, which are intentionally relieved, and which are controlled vent lands. The required vent dimensions and acceptable marking are governed by the part requirements, resin behavior, process plan, and tooling standard. On complex interfaces, a sectional detail that labels these zones is more useful than a single note calling for a general shut-off.
Design for Alignment and Service
Shut-offs depend on the mold locating system as much as on their own shape. If a face must resist a side load, examine whether leader guidance, interlocks, wedges, insert retention, or other supporting features establish position before the faces carry the load. Do not assume a small sealing feature can correct a broader alignment condition. It should arrive at its intended relationship, not be used as the primary locator for the mold assembly.
Service access is a design input. The team should be able to inspect, clean, repair, or replace the relevant members without creating unnecessary risk to adjacent precision surfaces. Inserts can simplify maintenance when the shut-off is likely to require attention, but they introduce retention, joint, tolerance-stack, and heat-transfer considerations. The selected approach should match the expected maintenance method and be reviewed with the tooling builder before release.
Hand Off Drawings and Inspection
The part drawing should identify datums and critical product relationships that the shut-off must protect, such as a sealing edge, opening, mating feature, or visible parting-line boundary. The tooling design then needs its own unambiguous definition of the mating surfaces, reliefs, engagement direction, inserts, and finish zones. Model-only intent can be missed when the distinction between a theoretical intersection and a manufactured clearance is not explicitly shown.
Inspection planning should distinguish molded-part acceptance from tool-build verification. For the tool, agree on the reference geometry, access for measurement, required contact evidence, and any functional tryout criteria. For the molded part, define how flash, mismatch, witness lines, and dimensions will be judged against the drawing or approved standard. This prevents a late dispute in which a mold face appears correct while the resulting functional condition has not been evaluated.
| Design choice | Potential advantage | Review before release |
|---|---|---|
| Integral shut-off | Fewer separate components and interfaces | Steel strength, repair access, local heat flow, and machining reach |
| Replaceable insert shut-off | Local repair or revision may be more manageable | Retention, insert joint location, tolerance stack, and replacement referencing |
| Sliding or motion-related shut-off | Can form otherwise inaccessible geometry | Guidance, contact sequence, wear path, venting, and service procedure |
Use a Focused Pre-Quote Review
Before requesting a tooling quotation, assemble the evidence needed to assess each shut-off realistically. Include the latest part model and drawing, resin or material grade, cosmetic requirements, expected production context, known gating constraints, and any mating or sealing function. Identify whether a feature is negotiable, whether flash is functionally critical, and where witness conditions are acceptable. A quotation based on undefined visual or functional limits cannot reliably compare tooling concepts.
Ask the tooling team to flag interfaces that need an engineering decision rather than silently absorbing assumptions. Useful questions include whether a feature needs a separate insert, whether a local part geometry change would strengthen supporting steel, how the interface will be vented, and what access is available for maintenance. The resulting proposal should record the selected concept and any open assumptions so later revisions remain traceable.
Questions engineers ask
Should every shut-off use the same angle?
No. Geometry should follow the sealing duty, mold motion, available supporting steel, alignment approach, wear risk, and tool construction. The drawing, tooling standard, and engineering agreement should control any specific requirement.
How should flash limits be communicated?
Define functional limits on the part drawing or approved acceptance standard, and identify cosmetic boundaries separately. The tooling package should show the relevant sealing and relief regions so the mold design can be evaluated against that intent.
When is a replaceable shut-off insert useful?
It can be useful where local repair, change control, or machining access matters. It also adds an insert interface and tolerance considerations, so the selection should be evaluated against the complete tool layout and service plan.
References and further reading
These resources explain related design and manufacturing principles. Project limits, acceptance criteria and process choices must be agreed against the current drawing.
Publication note: this article is general design guidance, not a material specification, a certified inspection report or a guarantee of process capability.
