Designing Features Near Clamping Surfaces

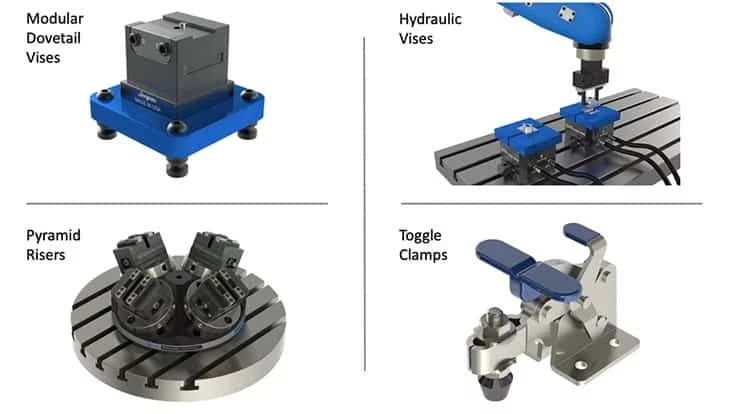

Why clamping changes feature design

A part is not machined in empty space. During each operation, it needs resistance to cutting forces and a repeatable position relative to the machine coordinate system. Clamping surfaces provide that resistance and location, yet the same faces often carry mounting, sealing, bearing-seat, appearance, or datum functions in the finished assembly. Designing features near clamping surfaces is therefore a sequence problem, not simply a question of leaving enough open area.

The central decision is whether a surface is temporary manufacturing real estate, a final functional surface, or both. When it serves both roles, the drawing should make the completed requirement unambiguous while allowing the manufacturing plan to establish and later refine it. A feature that is easy to reach before final clamping may become inaccessible afterward; conversely, a final finishing pass may be essential after the part is released from a higher-force setup.

• Classify faces as temporary holding, finished functional, datum, cosmetic, or a combination.
• Consider the full operation sequence, including reorientation and final finishing.
• Treat clamping access and feature access as linked design constraints.

Reserve holding allowance deliberately

Holding allowance is material or usable surface area reserved so a part can be gripped, located, or supported without damaging a finished requirement. It may take the form of an extra tab, sacrificial stock, a nonfunctional perimeter, an unmachined pad, or a region intended for later removal. Its appropriate form depends on geometry, material grade, process plan, part stiffness, and the required final condition; no universal width or thickness can be assigned responsibly.

A drawing benefits from explicitly identifying stock intended for removal when that condition affects a functional dimension. If an added tab is acceptable only before final trimming, define its removal boundary and any resulting edge condition. If a clamped face remains in the part, distinguish the portion allowed to receive contact marks from the portion that must meet flatness, finish, coating, or sealing requirements. This prevents a reviewer from treating all visible surface area as equally available for holding.

• Provide sacrificial features when the finished envelope leaves no practical holding area.
• Mark keep-out regions around sensitive surface requirements.
• State whether witness marks, clamp impressions, or local finish variation are acceptable on nonfunctional areas.

Protect access to critical features

A nearby clamp can physically obstruct a drill, end mill, reamer, probe, deburring tool, or measurement stylus. It can also force a tool to use an unfavorable approach, increasing the likelihood of chatter, deflection, incomplete edge treatment, or a difficult-to-verify result. Deep pockets beside tall walls and holes close to raised bosses deserve particular scrutiny because both the cutter body and its holder require clearance, not merely the cutting edge.

Functional features require different protection. A sealing land may need uninterrupted finishing and careful handling. A locating face may need a final pass after workholding changes. A bore intended to locate a rotating component may require a defined relationship to its mating datum, not merely its own size. When the feature’s function controls the order of work, communicate that relationship through datums, geometric requirements, surface requirements, and notes tied to the engineering agreement.

• Check clearance for the tool, holder, fixture, deburring method, and inspection device.
• Avoid placing a critical feature where a clamp must bridge across it.
• Define the feature-to-datum relationship that matters in assembly.

Choose the sequence before tolerancing

Tolerances near a gripping face should reflect how the part can be established, machined, released, and re-established. A common strategy is to create stable preliminary references, machine accessible features, then relocate the part using surfaces that have already been controlled. Final surfaces and close relationships are completed in the setup that best represents their assembly datums. The exact route remains a process-planning decision unless the product has a reason to mandate it.

Overconstraining a drawing with a preferred sequence can exclude viable approaches, while omitting essential sequence intent can create ambiguity. The useful middle ground is to specify the final geometry and identify any condition that makes order material: for example, final machining after heat treatment, preservation of a datum face, or prohibition of grip marks on a sealing zone. If a particular setup is required because of an assembly risk, document the rationale in the engineering agreement rather than relying on an informal expectation.

• Use final functional datums for final functional relationships.
• Add sequence notes only where product performance depends on them.
• Review distortion risk when stock removal or clamping loads change between operations.

Make the drawing inspection-ready

Inspection handoff is stronger when it answers three questions: what establishes the part, what is measured, and under what material condition or finishing state. A datum scheme should represent how the component interfaces with its mating parts, rather than merely the easiest face to clamp. Dimensions to features near clamping surfaces should trace back to those datums. Where form, orientation, or location is important, apply the relevant geometric control instead of expecting a collection of linear dimensions to communicate the same intent.

Also define the condition at inspection. Coating, polishing, blasting, heat treatment, or other finishing may alter the practical meaning of a surface requirement or obscure a temporary witness area. If surface appearance is important, describe the acceptable region and reference standard rather than using vague words such as smooth. If a bore, seat, or face has a specific fit or functional role, provide its mating context, material grade, and applicable standard. The inspection approach can then be proposed against a clear acceptance condition.

• Place datums on stable, assembly-relevant geometry.
• State whether requirements apply before or after any specified finishing step.
• Attach relevant mating conditions where a local feature has functional significance.

Balance fixture complexity and part geometry

The least expensive-looking geometry is not always the least demanding to hold. A compact part with finished surfaces on every side may need more reorientations, specialized support, or sacrificial features than a slightly larger blank with a clearly designated holding region. Thin sections can flex under clamp load; unsupported pockets can move during machining; and a finished face may require protection while another side is cut. These risks should be evaluated as part of the geometry, not treated as isolated supplier details.

The comparison below is qualitative. It is intended to guide an early design conversation, not to select a manufacturing route by itself. The drawing, material grade, lot size, available process plan, cosmetic expectations, and required measurement method govern the final decision.

Run a pre-quote design review

Before quotation, assemble the information that converts a feature-access concern into an actionable review. Include the current drawing and model, material grade, required standards, finish state, quantity context, revision status, and any mating geometry that explains a critical relationship. Flag surfaces that cannot accept marking, deformation, coating interruption, or extra stock. For features near clamping surfaces, add clear views or detail sections that reveal depth, approach direction, corner relief, and nearby walls.

Ask the reviewer to identify proposed holding references, inaccessible features, likely reorientation points, and any areas that need sacrificial allowance or a revised tolerance strategy. The objective is not to transfer product responsibility; it is to expose conflicts while a drawing change remains manageable. Record accepted decisions in the released documentation, especially when a local finish, datum relationship, or process-sensitive sequence is central to the design.

• Supply an accurate 3D model and controlled drawing revision.
• Identify no-mark, sealing, cosmetic, and datum-critical regions.
• Request feedback on holding concept, tool access, sequence sensitivity, and inspection access.
• Incorporate agreed changes into the drawing or engineering agreement before release.
