From Prototype to Production Machining with Controlled Drawing Review

Submit the current 2D drawing and, when available, the 3D model, along with material, heat-treatment, quantity, target date, surface requirements, and inspection needs. Identify critical dimensions, datums, mating features, and the drawing revision so the manufacturing route can be reviewed responsibly.

DFM review checks whether specified geometry can be machined, accessed, measured, and repeated as quantities change. SUUXIANG reviews tool access, datum strategy, tolerance stack, corner conditions, machining allowance, and secondary-process needs. Unresolved risks should be discussed before quotation or production commitments.

Sometimes, but the correct route depends on part geometry, material, quantity, critical features and evidence requirements. A prototype may prioritize design learning and revision flexibility, while later work may require more controlled setup, inspection planning and documentation. SUUXIANG evaluates the drawing and program requirements rather than assuming one process route fits every stage.

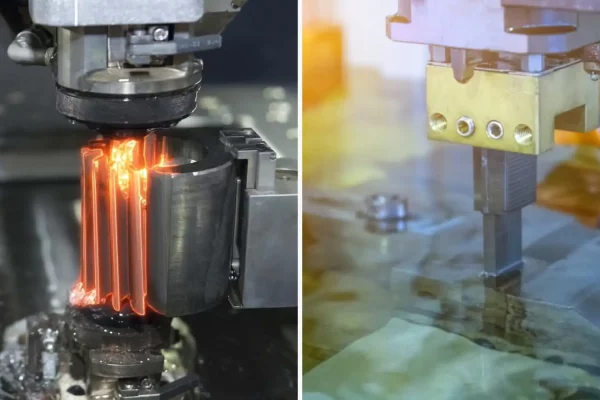

EDM may be considered where conventional cutting access is limited, where hardened material is involved, or where fine internal or sharp features require an appropriate wire path or electrode strategy. Precision grinding may be used for controlled flatness, parallelism, diameter or finish requirements. The sequence depends on heat treatment, stock allowance, datum control and inspection access.

Mark only the dimensions that are critical to fit, function or assembly, and define the relevant datums and geometric requirements. Include surface finish, hardness or heat-treatment requirements where they affect the feature. Over-constraining noncritical dimensions can add cost and inspection complexity. SUUXIANG can review whether the requested tolerance, material condition and measurement method align.

Inspection expectations should be defined with the RFQ: which features require reporting, the applicable drawing revision, measurement method, sampling expectation and any material or treatment documentation needed. SUUXIANG aligns final documentation with the order and verified inspection plan. Report format, dimensional scope and traceability requirements should be confirmed before production begins.

Provide a clearly identified revision level and communicate changes in writing with the updated drawing or model. Before work proceeds, assess the effect on material, completed operations, tooling, inspection, and delivery. Visible revision control helps prevent parts being made to superseded requirements and supports traceable project coordination.
