Wire EDM Start Hole Planning
Wire EDM start-hole planning is a design and manufacturing coordination task, not a default detail. The hole establishes where the wire can enter, influences how features are sequenced, and affects datum strategy, workholding, inspection, and quoting. A complete drawing defines the permitted access location and any protected surfaces while leaving process-specific choices to an agreed plan.
On this page
Start Holes Are Access Features
A wire EDM cut begins only after the wire has been introduced through an opening or from an accessible edge. For an enclosed internal contour, that opening is commonly called a start hole, threading hole, or wire-entry hole. It is not automatically a functional feature of the finished part. Its location should therefore be considered with the same care as any other nonfunctional manufacturing allowance that may remain visible on a completed component.
The central question is simple: where may the process enter without compromising the drawing intent? A location within removed material may be inconsequential. A location on a sealing land, cosmetic face, fatigue-sensitive transition, or controlled internal profile may not be. When the answer is restricted, the drawing should identify permitted zones or explicitly state the required disposition of the entry feature. A process plan and engineering agreement govern the final method.
- Treat the start hole as controlled access, not as an assumed design afterthought.
- Separate a permitted entry zone from the finished functional profile whenever practical.
- State whether any residual witness, local interruption, or secondary finishing is acceptable.
Choose Access With The Profile
The best entry position depends on the contour that follows it. An internal pocket with generous noncritical clearance may offer several choices, while a narrow slot or intricate profile can offer very few. The planned wire path must also account for whether the profile is fully enclosed, whether a slug is retained or released, and whether a finished edge has special sensitivity. These are geometry questions before they are machine questions.
An edge-start approach can avoid a separate internal access feature when the design permits an open path from the stock boundary. It may, however, change how the outline is defined or how the part is held. An internal entry can preserve an uninterrupted exterior boundary, yet it creates a feature that must be located and resolved. Neither route is inherently preferable; the released drawing, material condition, workholding concept, and agreed process plan decide.
- Use edge access when an open boundary is permissible and holding remains sound.
- Use internal access when exterior continuity matters and a controlled entry feature is acceptable.
- Flag narrow openings, intersecting contours, and protected wall regions during design review.
| Access approach | Useful when | Design attention |
|---|---|---|
| Internal start hole | The profile is enclosed and exterior entry is undesirable | Specify permitted location, remaining feature condition, and relevant datums |
| Edge entry | An opening to the stock boundary is allowed | Confirm boundary geometry, clamp strategy, and any resulting edge condition |
| Alternative EDM route | Wire access conflicts with the required enclosed geometry | Evaluate the functional geometry, electrode access, and agreed process plan |
Sequence Controls Part Stability
A profile may look independent on a drawing but become mechanically connected during machining by small webs, tabs, or a remaining slug. The cut sequence can influence how long those connections remain, how the workpiece is supported, and whether a released feature can move. For delicate sections, the order of roughing, finishing passes, openings, and outer profiles deserves early review rather than a late shop-floor decision.
Do not prescribe a universal sequence from a general rule. The suitable order depends on stock form, thickness, material grade, heat treatment condition, feature spacing, workholding, accuracy requirements, and the provider’s approved process plan. Designers can still communicate intent clearly: identify zones that need support, components that must not drop free, and faces where post-process blending or contact marks are limited.
- Identify any slug whose movement could affect a critical wall or nearby feature.
- Call out unsupported thin sections, delicate bridges, and areas requiring uninterrupted geometry.
- Discuss tabs or intentional retained connections only when their cleanup condition is defined.
Protect Datums And Functional Surfaces
A start hole should not become an accidental datum. If the functional geometry is located from external faces, bores, or established datum features, preserve that relationship in the drawing and inspection plan. Locating an access hole precisely may be necessary when it must avoid a protected region, but its coordinate should not replace the datum framework used to verify the finished contour.
Surface requirements also need practical interpretation. A broad finish callout may cover the EDM contour, while an entry hole or a subsequent cleanup area has a different condition. Distinguish between surfaces that are merely nonfunctional and surfaces that must remain continuous, burr-controlled, sealed, blended, or free of a witness. If a material grade or product standard imposes additional restrictions, reference it directly rather than assuming the process resolves them.
- Establish profile location from functional datums, not access features.
- Mark sealing, bearing, mating, cosmetic, and high-consequence regions explicitly.
- Clarify which surfaces are measured after final processing and which are only process-access areas.
Connect Drawing And Inspection
A useful handoff tells manufacturing and inspection what is final, what is sacrificial, and what evidence matters. Use a clear profile tolerance scheme, identify datum references, and state whether the wire-entry feature is inside a removed region, retained in the finished part, or subject to a separate requirement. Ambiguous notes such as “start hole as needed” can be adequate only when every possible location is functionally harmless.
Inspection planning should follow the finished feature, not simply the machining route. For example, an internal contour may require verification of size, position, form, or local transition relative to designated datums. The appropriate measurement method, sampling approach, reporting format, and acceptance standard should be stated when they are contractually important. Where a drawing is silent, the provider should not be assumed to infer a special inspection regime.
- Dimension allowable access zones from the same datum scheme used by the part drawing.
- State any required report, measurement reference, or acceptance standard before quotation.
- Separate final-profile requirements from requirements for temporary or nonfunctional access features.
Compare Wire And Alternative Access

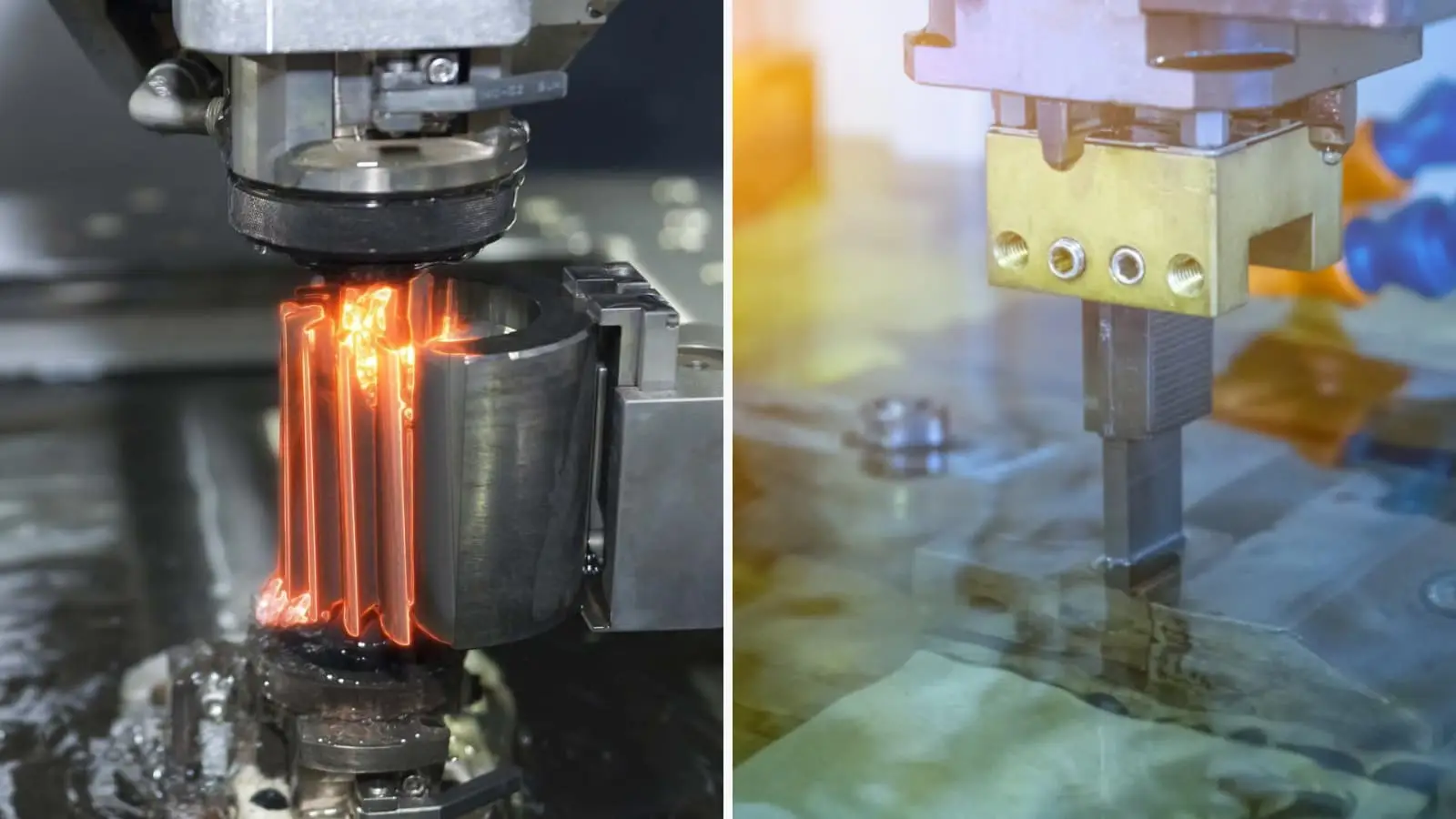

Wire EDM is particularly relevant when a conductive workpiece needs a narrow, enclosed, or complex through-profile and a wire can be threaded into the cut. If no acceptable threading route exists, the discussion may shift to a different feature strategy or another EDM approach. That does not mean one process is universally superior. The accessible geometry, depth, required cavity form, electrode considerations, and drawing requirements shape the evaluation.
The decision should remain at the level of geometry and deliverable requirements. A closed through-profile with an acceptable entry zone may suit wire access. A blind internal form may call for a different approach because a continuously threaded wire path is not available in the same way. Designers should present the required geometry without assuming the supplier’s exact tooling, machine configuration, or setup method.
- Use the finished geometry and allowable access to frame the process discussion.
- Distinguish a through-profile from a blind cavity early in the design cycle.
- Ask for a manufacturability review when the intended access path conflicts with protected geometry.
| Question | Threaded wire approach | Alternative EDM discussion |
|---|---|---|
| Required geometry | Through-profile with a feasible entry path | Blind or otherwise inaccessible internal form may require review |
| Access concern | Entry location and wire path must be acceptable | Electrode and cavity access become central considerations |
| Drawing handoff | Define allowed entry and finished contour requirements | Define cavity geometry, critical surfaces, and applicable controls |
Prepare A Focused Quote Package
A quote request is stronger when it contains the released drawing, revision status, material grade and condition, stock assumptions if relevant, quantity, required delivery context, and inspection expectations. For wire EDM start-hole planning, add a note or marked view showing permitted access areas, prohibited surfaces, and any uncertainty about whether an entry feature may remain. This avoids pricing a route that later conflicts with part function.
Include only constraints that genuinely matter. A request can identify critical contour regions, flatness or positional relationships where specified, downstream coating or assembly interfaces, and any required documentation. It should not substitute broad assurances for engineering detail. If the geometry leaves no clear threading route, ask for feedback before release and record the agreed design change or process allowance in the controlled drawing package.
- Send the current revision, material grade, quantity, and required drawing-controlled specifications.
- Mark permitted and prohibited wire-entry regions directly on the controlled information.
- Identify downstream finishing, assembly, or inspection constraints that affect access decisions.
- Request clarification before release when an enclosed contour has no obvious permissible entry route.
Questions engineers ask
Must every enclosed wire EDM profile have a visible start hole on the finished part?
No. The answer depends on the permitted access route and the finished geometry. A start hole may lie within material that is removed by the contour, may be located in a designated nonfunctional area, or may require a different agreed approach. The drawing and process plan should define what is acceptable.
Should a start hole have its own tolerance?
Only when its position or remaining condition affects function, access, or verification. Otherwise, define a permitted access zone rather than applying an unnecessarily tight feature tolerance. Functional profile tolerances and datum relationships should remain independent of a nonfunctional entry feature.
What should be discussed before requesting a quote?
Provide the controlled drawing, material grade and condition, quantity, profile requirements, datums, inspection needs, and any prohibited entry areas. Also identify whether the contour is through, whether a slug can be released, and whether downstream finishing or assembly makes a local witness unacceptable.
