Designing Press-Fit Features in Machined Parts

Start With the Assembly Function

A press-fit feature creates retention by forcing one component into another with an intended interference condition. That description is simple, but the engineering objective may not be. A joint may locate a bearing, retain a pin, transfer torque, seal a path, provide electrical continuity, or hold a part only until a later operation. Each objective places different importance on insertion force, axial retention, concentricity, distortion, and the ability to remove or replace the component.

Begin by identifying what the joint must do during assembly, use, transport, maintenance, and end-of-life service. Also identify what must not happen: cracking, fretting, rotation, bore growth, loss of alignment, damage to a coated surface, or a force level beyond the available assembly method. The drawing should express the resulting functional requirements, while the selected dimensions and controls should be reviewed against the actual mating parts and planned process.

• State whether the component must resist axial load, torque, vibration, thermal cycling, or a combination.
• Decide whether removal is prohibited, permitted with a service procedure, or required without damage.
• Identify which part establishes location and which part is intended to yield, if either does.

Treat Interference as a System

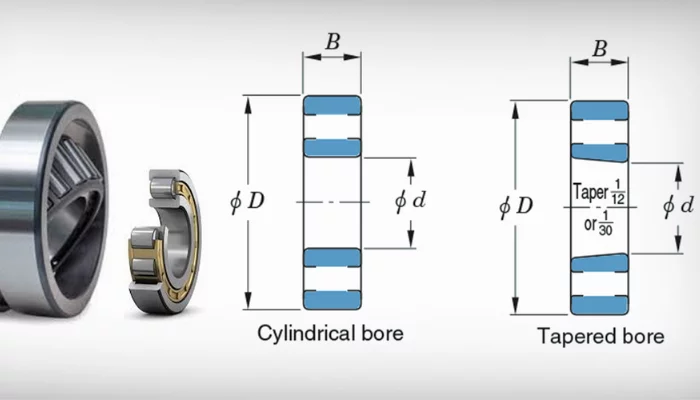

The effective fit is shaped by more than nominal shaft and bore size. Diameter limits, roundness, cylindricity, taper, surface texture, chamfers, local wall stiffness, coating thickness, and temperature all influence how the parts meet. A dimension pair that appears acceptable in isolation can produce inconsistent assembly if form error or geometry near the interface has not been considered.

Material pairing is equally important. A stiff housing may transmit more local stress than a more compliant one. A thin boss or slotted feature can expand differently from a thick continuous ring. Dissimilar thermal expansion may alter retention over the product temperature range. Surface treatments can change friction or dimensional condition, and their thickness, coverage, and sequencing belong in the engineering agreement rather than being treated as a finishing detail.

There is no universal interference value or universal insertion-force target for machined press fits. The appropriate limits depend on the drawing, material grade and condition, interface length, component geometry, loading, temperature range, surface state, and validated process plan. Where these inputs are incomplete, the fit should be marked for engineering review rather than filled with assumed values.

Build Geometry for Controlled Entry

Entry geometry is a major determinant of assembly behavior. A lead-in chamfer helps guide the mating component, reduces the chance of shaving an edge, and makes the start of insertion less sensitive to minor handling misalignment. The lead-in must be compatible with the functional engagement length and with any requirement to support a component close to an edge. Its form, size, and transition should be defined where they affect performance.

Avoid treating the press-fit zone as an isolated cylindrical feature. Reliefs, shoulders, grooves, cross holes, threads, sharp internal corners, and sudden wall-thickness changes can concentrate stress or alter local compliance. A locating shoulder may be needed to set insertion depth, but the shoulder face, perpendicularity, and datum scheme must support the required positional relationship. Allow access for tooling and a clear path for the component throughout insertion.

Feature choices borrowed from molded plastic assemblies need careful translation. Local compliance features can be useful in a purpose-designed joint, yet their behavior in machined material depends on section shape, grain direction where relevant, finishing, and load path. A feature intended to ease assembly should not be added without evaluating its effect on fatigue, sealing, cleanliness, and inspection.

Choose an Assembly Strategy Early

Assembly method should be decided while the interface is being designed. Manual force, arbor pressing, pneumatic or servo pressing, thermal assistance, and fixture-supported insertion impose different controls on alignment, speed, force monitoring, and repeatability. A controlled press may provide useful force-versus-distance information, but that trace is meaningful only when acceptance criteria and response actions have been defined for the particular joint.

The fixture must support the receiving part close enough to the interface to avoid bending or collapsing the component. It must also align the insertion axis with the feature axis. Applying force through a rolling element, thin flange, cosmetic face, or unsupported section can damage parts even when the dimensional fit is suitable. Specify the permitted contact surfaces and orientation when they are essential to successful assembly.

Lubrication, cleaning, and thermal conditioning require explicit process ownership. They can affect insertion force and retention behavior, and uncontrolled residue can conflict with downstream coating, bonding, electrical, or cleanliness requirements. If they are allowed, identify the approved material or process plan, application limits, and verification responsibility. Do not assume a shop will select them based solely on a fit dimension.

• Define the insertion direction, insertion-depth stop, allowed force path, and support surfaces.
• State whether force-displacement monitoring, go/no-go confirmation, visual checks, or post-assembly measurement is required.
• Identify handling conditions that could change temperature or surface condition before assembly.

Compare Joint Paths Qualitatively

A direct press fit is often attractive because it can be compact and part-count efficient, but it is not always the most controllable solution. When loading, access, material behavior, or service needs conflict, another retention method may offer a clearer design and validation path. The choice should be based on the product requirements, not on an assumption that a press fit is automatically simpler.

The comparison below is qualitative. It is intended to frame design review questions, not to select a process without evaluation. The governing drawing, applicable standard, material grade, validation evidence, and assembly plan determine whether any option is suitable.

Hand Off a Manufacturable Drawing

A useful drawing package controls the interface in context. Identify the press-fit diameter or diameters, the functional engagement length, entry geometry, seating face, and relevant datums. Add form or orientation controls only where they protect the assembly requirement. Overcontrolling every feature can increase inspection burden without improving the joint; undercontrolling a locating relationship can create assembly variation that a diameter callout cannot solve.

Clearly separate finished dimensions from pre-finish dimensions when plating, coating, heat treatment, or other operations change the interface. Note the required material grade, condition, and any approved surface requirement that affects the contact zone. If a mating component is supplied separately, include its controlled drawing revision or a concise interface-control document. The manufacturer cannot reliably optimize a joint from one half of the definition alone.

Inspection planning should follow the same logic. Determine which dimensions need variable measurement, which may use functional gauging, and which characteristics must be checked after assembly. Sampling, acceptance criteria, measurement temperature, and gauge capability should follow the governing quality plan or engineering agreement. A force trace alone is not a substitute for dimensional control, and dimensional conformance alone may not demonstrate complete assembly.

• Identify the mating part revision and whether it is supplied, purchased, or represented by a controlled specification.
• Call out surfaces that must remain free of burrs, damage, contamination, or coating buildup where applicable.
• Specify the post-assembly datum or characteristic if the assembled relationship is critical.

Prepare the Quote Review Package

A productive pre-quote package gives the manufacturing team enough information to identify risks before parts are made. Provide the part drawings, assembly view, mating-part definition, material and finish requirements, expected production stage, and any known assembly equipment constraints. Explain the joint function and intended verification, especially when the component is safety-relevant, load-bearing, sealed, or difficult to replace.

Ask focused review questions. Can the proposed geometry be machined and inspected from the indicated datums? Does the feature require a special tool, fixture, gauge, or assembly support? Could finishing change the final interface condition? Are burr control, cleanliness, or edge condition critical? Is a representative assembly trial needed before committing to production controls? These questions surface tradeoffs early without implying that a particular result is guaranteed.

For development builds, record what is being learned. Dimensional results, observed insertion behavior, part condition after assembly, and any disassembly findings can inform the next drawing revision. Changes should be made through controlled engineering review, particularly where a revision affects stress, retention, safety, or compatibility with an existing mating part.

• Provide both component drawings and the mating-interface definition.
• List environmental, load, service, and assembly constraints that govern the design.
• Request feedback on manufacturability, inspection access, finishing sequence, and assembly-fixture needs.
• Document open decisions rather than hiding them inside nominal dimensions.
